Backlighting

The BASIC Light Panel System is built for optimal design integration with a thin profile starting at 1/4″ thin to provide an ultra-slim sheet of light. Low voltage LEDs are integrated with an optical grade etched acrylic to provide evenly distributed lighting. The BASIC Light Panel is a versatile light source available in customizable shapes and sizes to give every project even, uniform illumination.

Premium Light Panel Systems have been specifically developed with LEDs of extremely narrow color-binning for precision replacement of in-field systems that exactly match color temperatures of existing, installed panels. What’s more, their color accuracy is exceptional at 95+ CRI.

They are available as Premium Standard Power (PSP) or Premium High Power (PHP) Light Panels.

Max dimensions 60″ x 120″.

The AURA Light Panel System is a complete backlit LED solution utilizing our Light Panel which uniformly distributes light edge to edge and provides an even beautiful glow.

The AURA Light Panel System allows designers to have a clean acrylic face and glowing edge with the aluminum profile hidden.

Generally speaking, our DYNAMIC Light Panels are complete backlit solutions that utilize EOS Light Panels to distribute RGBW light with attention-grabbing, fun lighting effects across the surfaces of the panels – via individually-addressable LEDs in segment of six along the panel edges. They add elements of animated interest as the colors change across the entire panel all at once or with only portions at a time that blend together in waves with interest gradient patterns.

When used as a frameless EOS AURA solution, The DYNAMIC AURA Light Panel System is a complete backlit solution – specifically for wall applications – that utilizes our AURA Light Panel in a new way… to uniformly distribute color-changing, addressable RGBW light edge to edge with an even, beautiful glow and hidden profile.

Animated lighting effects add excitement to this complete solution ready to just unbox and hang!

The BASIC Dim-to-Warm Light Panel System is built for optimal design integration with a thin profile starting at 1/4″ thin to provide an ultra-slim sheet of light. Low voltage LEDs are integrated with an optical grade etched acrylic to provide evenly distributed lighting. At full brightness, the panels are 2850K; when dimmed, the panels are 1800K. 90+ CRI.

The CUSTOM SHAPE Light Panel System can accommodate any 2D shape including ovals, diamonds, triangles, channel letters, and logos.

Available in all color temperatures, colors, and combinations including our Color Light Panel System our Color Tuning Light Panel System, and Crystal Light Panel configuration (Dual Side Illumination).

The COLOR Light Panel System offers Red, Green, Blue and Optional White (RGB or RGBW) LEDs on the same chip, allowing lighting designers the ability to change colors in their design. The colors can be adjusted to any Pantone selected by the designer – allowing versatility and imaginative applications.

The CRYSTAL Light Panel System is a clear, dual-sided, ultra-slim sheet of light designed to give even light output on both sides of the panel. When the panel is not illuminated, it is clear and translucent.

The CRYSTAL Light Panel System can be delivered Framed or Frameless, in Color, Color Tuning, or Custom. It was developed to be used in illuminated shelving, blade type signage and partition walls.

The CRYSTAL Light Panel System can also be used to replicate a faux daylight underneath a working UV treated skylight in the evening.

The FRAMED Light Panel System was designed for unfinished applications where the Light Panel would be part of a larger assembly, or the Light Panel is the finished feature and needs to be visible with a finished profile.

The FRAMED Light Panel System offers finished aluminum profiles starting at 1/4″ thin. This unique design provides an ultra-slim sheet of light with a finished aluminum edge in square or rectangle configurations.

Diffused Light Paper features & options:

· Thin, lightweight, flexible, cuttable light sheets
· 160 degree lensed LEDs suited for shallow setback starting at 1/4″*
· For walls, ceilings, curved structures and custom shapes
· Multiple lumen packages/wattages to suit your application
· 2700K, 3000K, 3500K, 4000K or 6000K dedicated white
· 90+ CRI

Diffused Light Paper is suited for shallow setback starting at 1/4″, depending on the transparency of the illuminated material; most can be evenly illuminated w/ 1 – 2″ setback. We fully recommend creating a mock up prior to specifying the job.

Contact your EOS agent for assistance

Tunable Basic Light Paper features & options:

· Multiple lumen packages/wattages to suit your application
· Thin, lightweight, flexible, cuttable light sheets
· Suited for shallow setback starting at 1/4″*
· For walls, ceilings, curved structures and custom shapes
· Standard Full Range 2700K – 6000K tunable white
· Optional Warm Range 2700K – 4000K tunable white
· 95+ CRI

Tunable Basic Light Paper is suited for shallow setback starting at 1/4″, depending on the transparency of the illuminated material; most can be evenly illuminated w/ 1 – 2″ setback. We fully recommend creating a mock up prior to specifying the job.

Contact your EOS agent for assistance.

Basic Outdoor Light Paper features and options:

· For indoor and outdoor backlighting of walls, ceilings, curved structures and custom shapes
· Thin, lightweight, flexible, cuttable light sheets
· Suited for shallow setback starting at 1/4″*
· Multiple lumen packages/wattages to suit your application
· 2700K, 3000K, 3500K, 4000K or 6000K dedicated white
· 80 CRI standard, 90 CRI optional

Basic Outdoor Light Paper is suited for shallow setback starting at 1/4″, depending on the transparency of the illuminated material; most can be evenly illuminated w/ 1 – 2″ setback. We fully recommend creating a mock up prior to specifying the job.

Contact your EOS agent for assistance.

Tunable Basic Outdoor Light Paper features & options:

· Thin, lightweight, flexible, cuttable light sheets
· Suited for shallow setback starting at 1/4″*
· For walls, ceilings, curved structures and custom shapes
· 2700K – 6000K tunable white
· Multiple lumen packages/wattages to suit your application
· 80 CRI, 90 CRI optional

*Tunable Basic Outdoor Light Paper is suited for shallow setback starting at 1/4″, depending on the transparency of the illuminated material; most can be evenly illuminated w/ 1 – 2″ setback. We fully recommend creating a mock up prior to specifying the job.

Contact your EOS agent for assistance.

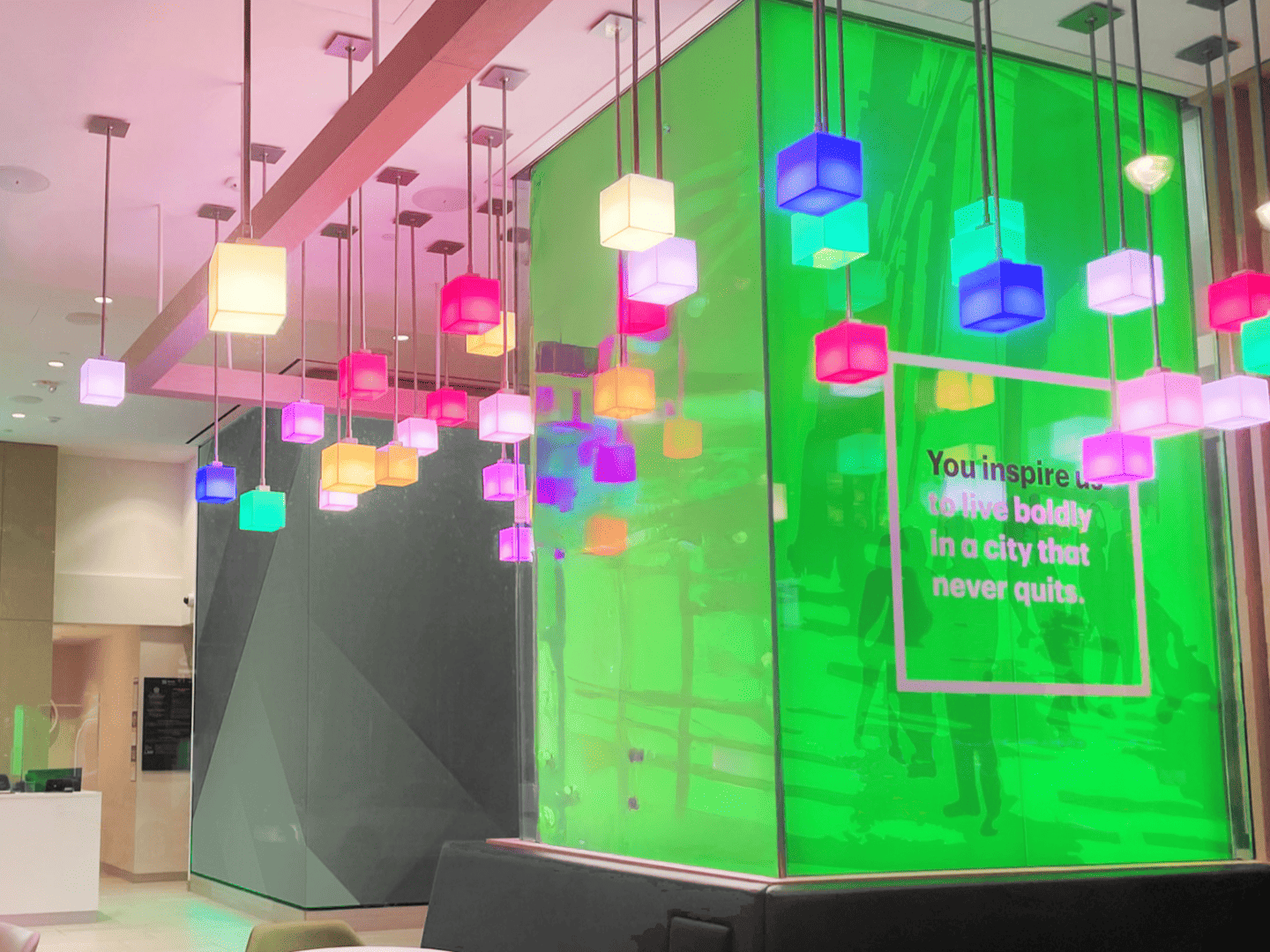

RGB Outdoor Light Paper features & options:

· For indoor and outdoor backlighting of walls, ceilings, curved structures and custom shapes
· Thin, lightweight, flexible, cuttable light sheets
· Suited for shallow setback starting at 1/4″*
· Multiple lumen packages/wattages to suit your application
· RGB (red green blue) for color shifting
· 80 CRI

RGB Outdoor Light Paper is suited for shallow setback starting at 1/4″, depending on the transparency of the illuminated material; most can be evenly illuminated w/ 1 – 2″ setback. We fully recommend creating a mock up prior to specifying the job.

Contact your EOS agent for assistance.

RGBW Outdoor Light Paper features & options:

· For indoor and outdoor backlighting of walls, ceilings, curved structures and custom shapes
· Thin, lightweight, flexible, cuttable light sheets
· Suited for shallow setback starting at 1/4″*
· Multiple lumen packages/wattages to suit your application
· Color Changing RGB plus dedicated white options (2700, 3000, 4000, 6000K)
· 80 CRI

RGBW Outdoor Light Paper is suited for shallow setback starting at 1/4″, depending on the transparency of the illuminated material; most can be evenly illuminated w/ 1 – 2″ setback. We fully recommend creating a mock up prior to specifying the job.

Contact your EOS agent for assistance.
