Showroom Panel – EOSLight

Complete, Suspended, Indoor, Showroom, Task, Luminaire

Showroom Panel

The SHOWROOM PANEL is specifically designed to impress, casting even and wide-ranging luminance down on cars, trucks, vans and other large objects. The SHOWROOM PANEL is an EOS ‘Complete Solution,’ meaning that it delivers at the job site to your spec, ready to be installed without any additional assembly, wiring or hassles.

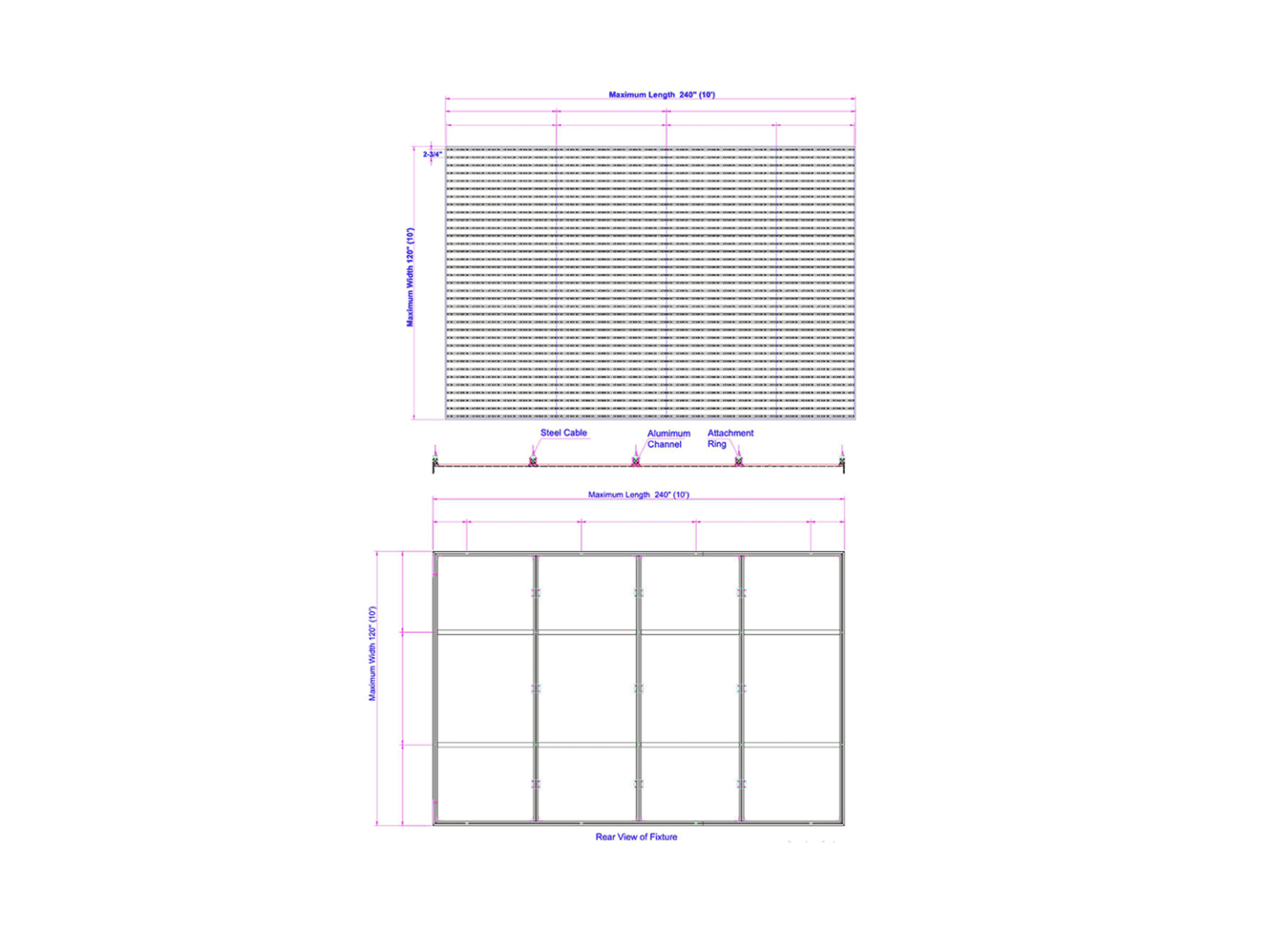

This decorative lighting solution is both attractive and functional, with a maximum size of 118.125″ x 240″, and is constructed of an EOS FABRIK overlay with LEDs. It is available with either Surface or Pendant mounting.

Downloads:

Find Your Local Rep Now

Showroom Panel Features

Additional Features

• White or Printed Stretch Fabric
• Dedicated White, Tunable White, RGB or RGBW
• 90+ CRI Standard, Premium 95+ CRI Available at Additional Cost
• Multiple Mounting options
• 24VDC
• Indoor Rated
• Max size: 118.125″ x 240″ ; inquire for larger sizes
• 700 Lumens per square foot @ 6000K

Compatible Power Supplies

010V – 0-10V
ELV – Electronic Low Voltage
DMX – DMX/DALI
PI – Plug In
DPI – Dimmable Plug In

Color Temperatures

2400K
2700K
3000K
3500K
4000K
6000K
6500K
Color Tuning 2400K to 6000K
RGB + 2700K
RGB + 3000K
RGB + 3500K
RGB + 4000K
RGB + 6000K

Added Details

• Thickness of 90mm (3.6”) allows LEDs along the perimeter of the profile
• Standard trim is black powder coated aluminum; unfinished and custom color trim available
• These are lighter weight and larger in size; they would be better for display in large areas
