Browse DMX / RGB / RGBW

DMX-controlled drivers and decoders for RGB, RGBW, and color-changing LED applications. Built-in decoders eliminate the need for separate DMX hardware.

Browse Static White — Dimmable

Single-channel constant voltage drivers for static white LED strips, LightPanels, and linear fixtures. Multiple dimming protocols available including 5-in-1, ELV/TRIAC, and 0-10V.

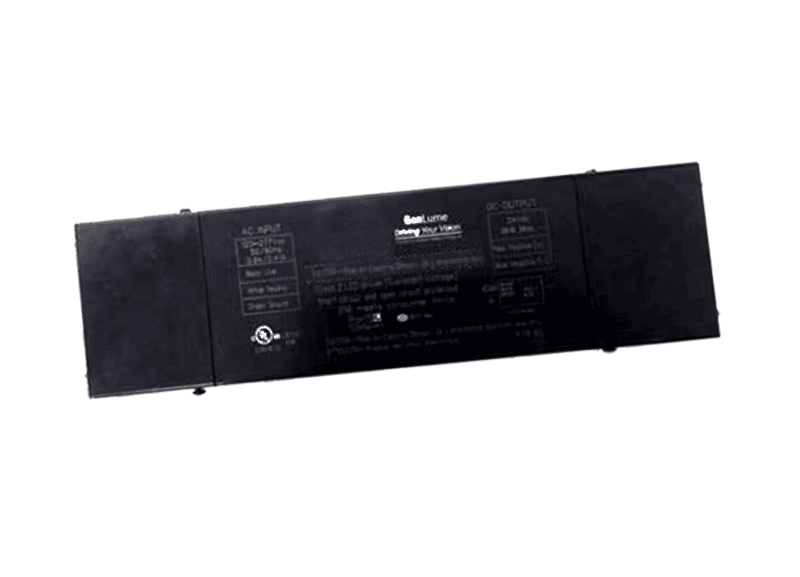

Browse Static White — Non-Dimmable

Constant-on power supplies for applications where no dimming control is needed.

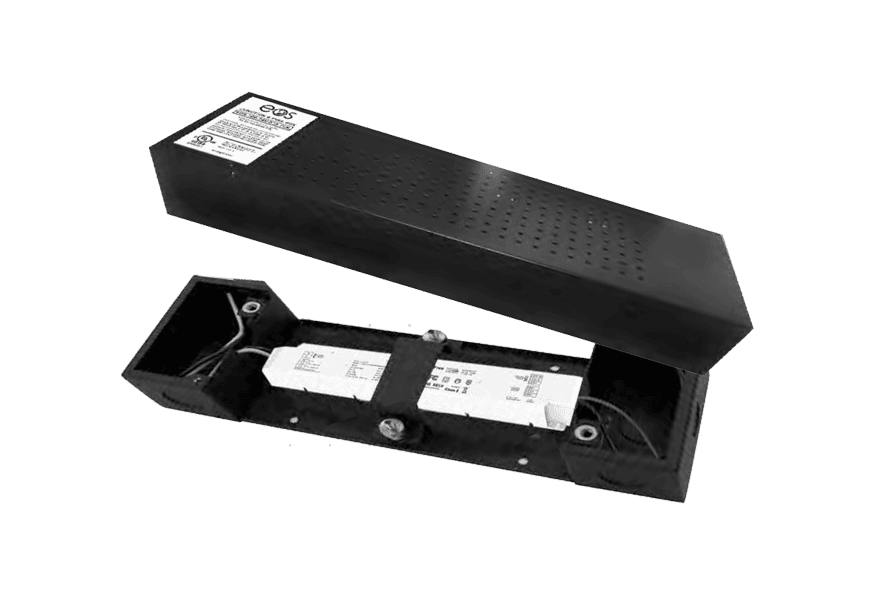

Browse Tunable White

Adjustable color temperature drivers for warm-to-cool white LED applications. Ideal for human-centric lighting in healthcare, hospitality, and commercial environments.

Browse Wiring, Installation & Programming Guides

Installation guides, wiring diagrams, programming manuals, and technical documentation for EOS driver products.

EOS 5-in-1 Dimmable Driver — 96W

Universal 24VDC constant voltage driver with 5-in-1 dimming compatibility.

Key Features

5-in-1 dimming: Triac, 0-10V, 1-10V, 10V PWM, and Rx
96W output at 24VDC constant voltage
Isolated interface for clean dimming performance
Universal input voltage

Specifications

Output: 96W, 24VDC
Dimming: 5-in-1 (Triac/0-10V/1-10V/PWM/Rx)
Certification: UL Listed
Warranty: 5 Years

Applications
LED strips, LightPanels, cove lighting, under-cabinet lighting, and architectural accent illumination.

EOS 5-in-1 Dimmable Driver — 192W

High-capacity 24VDC constant voltage driver with 5-in-1 dimming.

Key Features

5-in-1 dimming: Triac, 0-10V, 1-10V, 10V PWM, and Rx
192W output at 24VDC constant voltage
Ideal for larger runs and multi-fixture installations

Specifications

Output: 192W, 24VDC
Dimming: 5-in-1 (Triac/0-10V/1-10V/PWM/Rx)
Certification: UL Listed
Warranty: 5 Years

Applications
Larger LED strip runs, extended cove lighting, multi-fixture architectural projects.

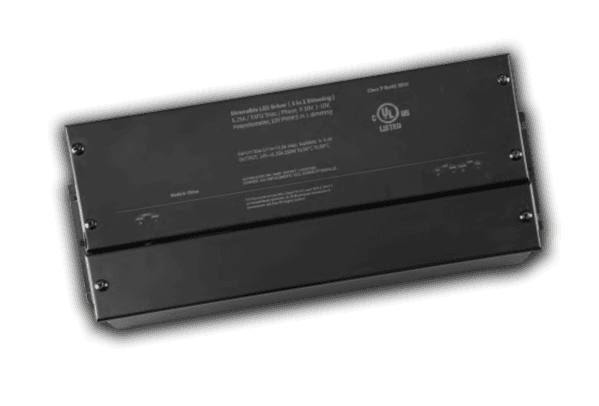

EOS 5-in-1 Dimmable Driver — 288W

Heavy-duty 24VDC constant voltage driver with 5-in-1 dimming.

Key Features

5-in-1 dimming: Triac, 0-10V, 1-10V, 10V PWM, and Rx
288W — highest capacity in the 5-in-1 series
Isolated interface for clean dimming

Specifications

Output: 288W, 24VDC
Dimming: 5-in-1 (Triac/0-10V/1-10V/PWM/Rx)
Certification: UL Listed
Warranty: 5 Years

Applications
Large-scale LED installations, extended architectural lighting runs, commercial and hospitality.

EOS Class 2 Dimmable Driver — 96W (5-in-1)

UL Class 2 rated electronic driver with 5-in-1 dimming.

Key Features

UL Class 2 rated for safe low-voltage output
5-in-1 dimming: Triac fwd/rev, 0-10V, 1-10V, resistor, PWM
96W maximum output at 24VDC

Specifications

Output: 96W, 24VDC
Rating: UL Class 2
Dimming: 5-in-1
Certification: UL Listed
Warranty: 5 Years

Applications
Class 2 compliant installations, residential, hospitality, applications requiring low-voltage safety ratings.

EOS ELV/TRIAC Dimmable Driver — 96W

Compact constant voltage driver with ELV and TRIAC dimming.

Key Features

ELV and TRIAC forward-phase dimming
96W output at 24VDC
Compatible with most residential dimmers

Specifications

Output: 96W, 24VDC
Dimming: ELV / TRIAC
Certification: UL Listed
Warranty: 5 Years

Applications
Residential dimming, under-cabinet, cove lighting, standard architectural applications.

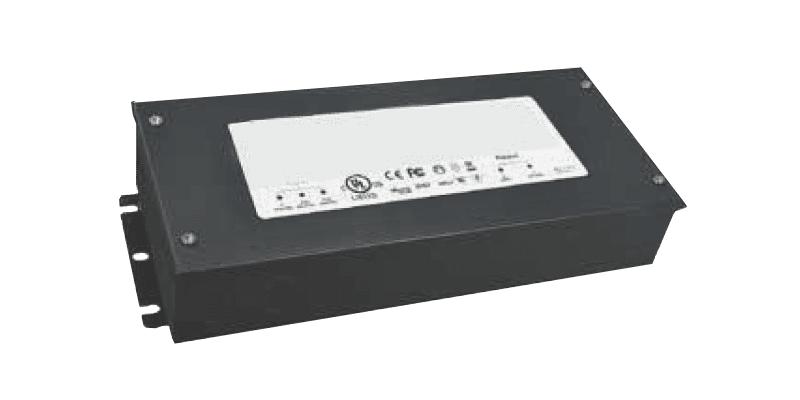

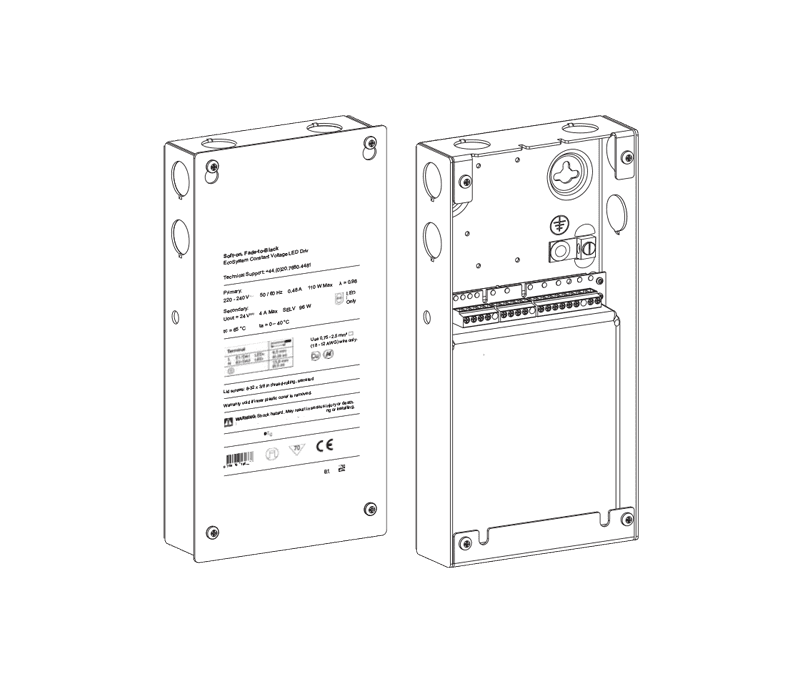

EOS 0-10V Junction Box Driver — 96W (IP66)

Weatherproof 0-10V dimmable driver in IP66 rated junction box.

Key Features

IP66 rated — indoor and outdoor use
0-10V dimming protocol
96W output at 24VDC
Junction box enclosure for code-compliant installation

Specifications

Output: 96W, 24VDC
Dimming: 0-10V
IP Rating: IP66
Certification: UL Listed
Warranty: 5 Years

Applications
Outdoor cove lighting, wet-location installations, exterior signage, covered patios, indoor/outdoor architectural lighting.

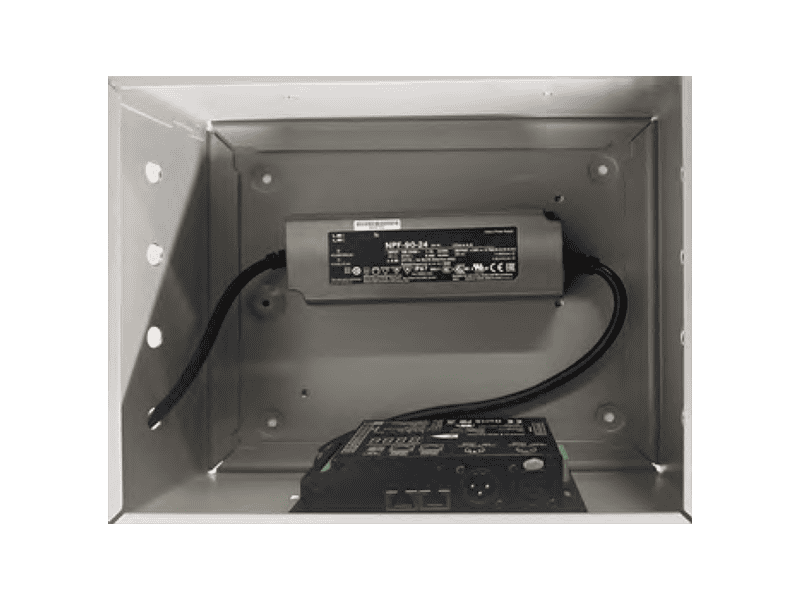

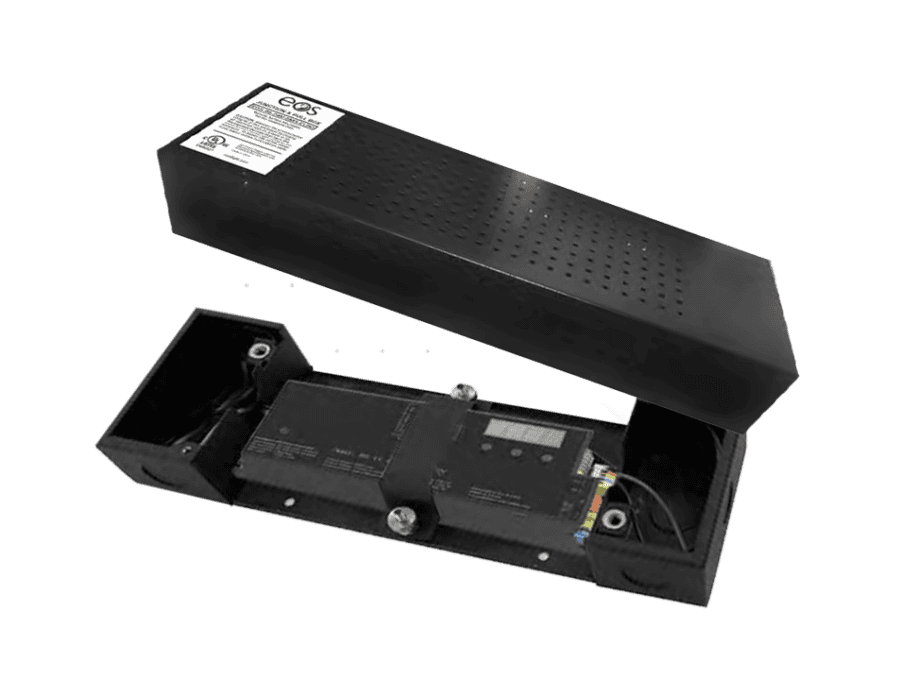

EOS Enclosed Dimmable Driver — 90W

Enclosed constant voltage driver for permanent hardwired installations.

Key Features

Code-compliant metal enclosure
Conduit knockouts for hardwired installation
90W output at 24VDC
Dimmable

Specifications

Output: 90W, 24VDC
Enclosure: Metal with conduit knockouts
Certification: UL Listed
Warranty: 5 Years

Applications
Permanent architectural installations, commercial build-outs, code-compliant projects.

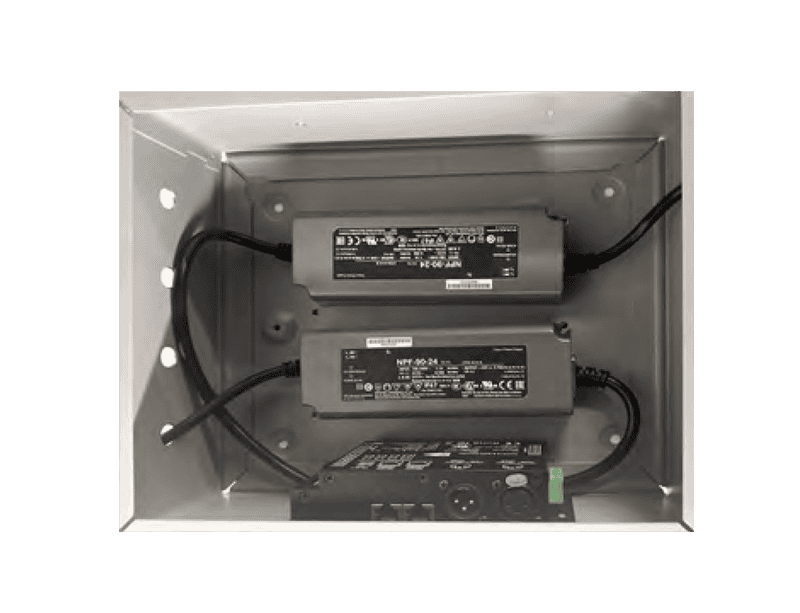

EOS Enclosed Dimmable Driver — 180W

High-capacity enclosed driver for permanent hardwired installations.

Key Features

Code-compliant metal enclosure
Conduit knockouts for hardwired installation
180W output at 24VDC — highest capacity enclosed driver

Specifications

Output: 180W, 24VDC
Enclosure: Metal with conduit knockouts
Certification: UL Listed
Warranty: 5 Years

Applications
Large-scale permanent installations, commercial and hospitality projects, extended lighting runs.

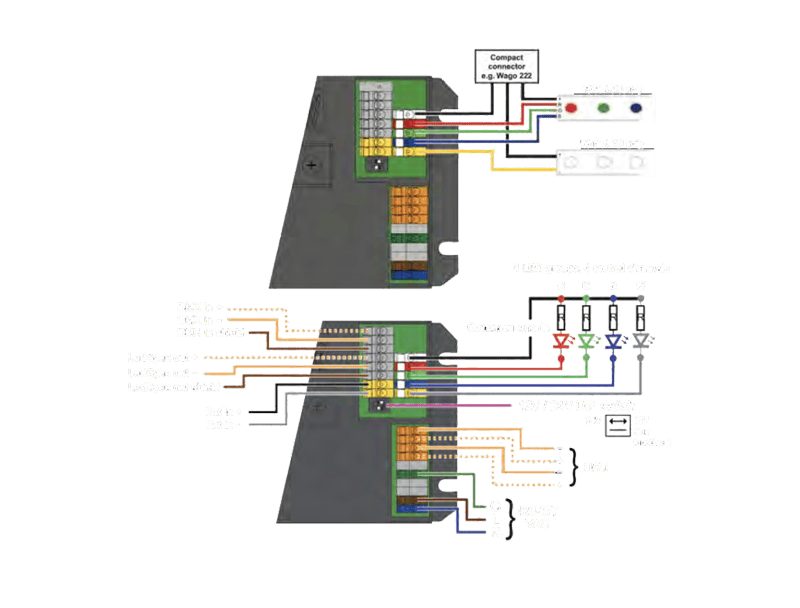

EOS DMX Decoder & Driver — Installation Guide

Complete installation and wiring guide for the EOS DMX Decoder & Driver.

Covers DMX addressing, wiring diagrams, daisy-chaining, and troubleshooting for the EOS-80W-96W-24V-ENC.

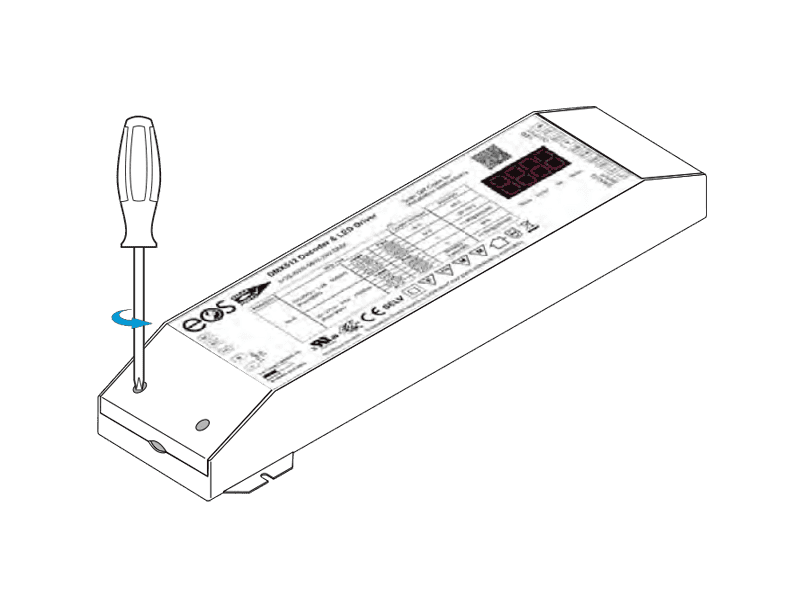

EOS DMX Decoder & Driver — 80W/96W Enclosed

All-in-one power supply and DMX512 decoder for RGB, RGBW, and Tunable White LED applications.

Key Features

Built-in DMX512 decoder — no external decoder needed
4 individually controlled RGBW output channels
120VAC or 277VAC input → 24VDC constant voltage output
80W at 120V / 96W at 277V
Daisy-chain up to 10 units

Specifications

Input: 100–277VAC
Output: 24VDC, 4-channel
Enclosure: Code-compliant metal with conduit knockouts
Certification: UL Listed (cULus)
Warranty: 5 Years

Applications
Color-changing LightPanels, RGB/RGBW cove lighting, tunable white architectural lighting, entertainment and hospitality installations.
