All-in-one power supply and DMX512 decoder for RGB, RGBW, and Tunable White LED applications. No external decoder needed.

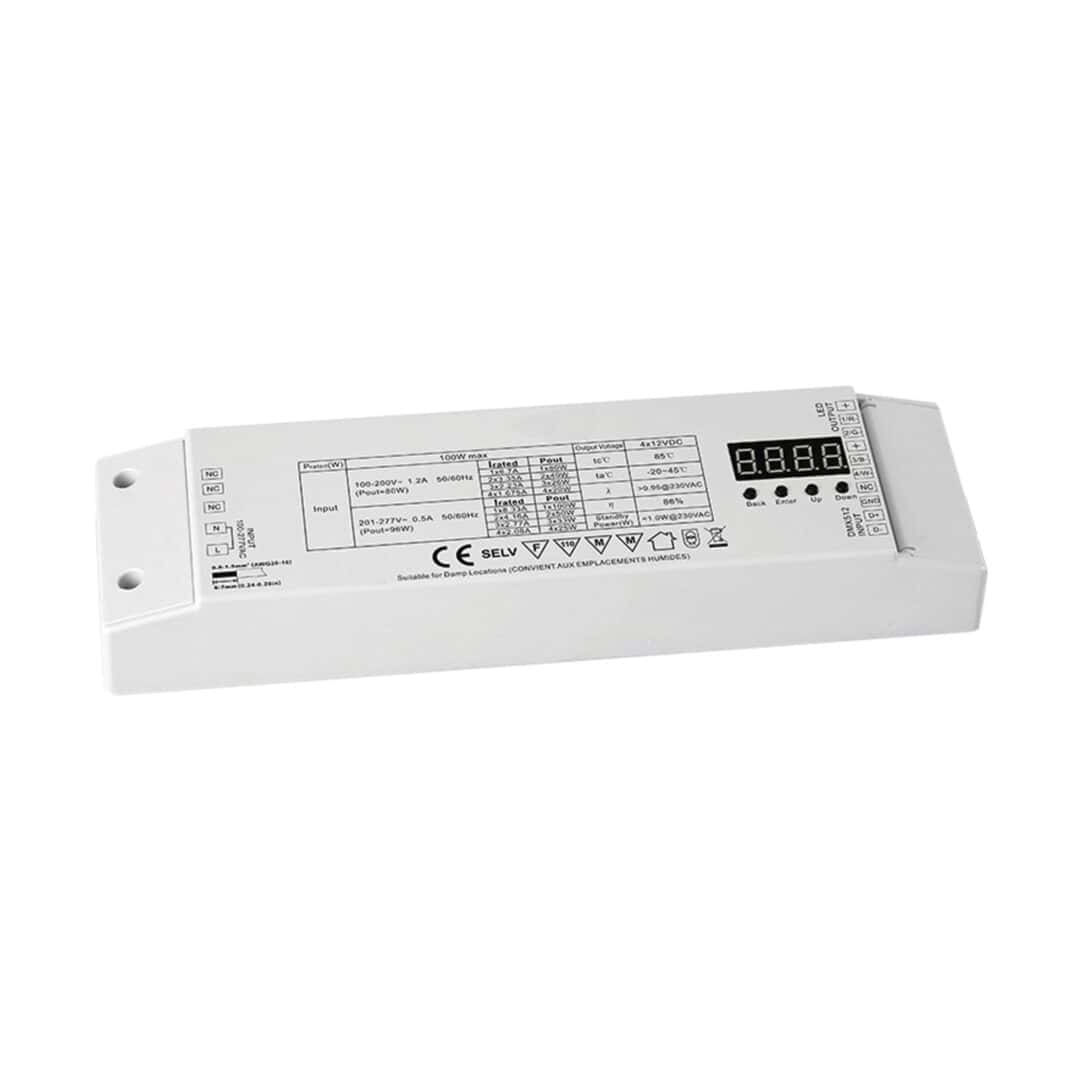

EOS DMX Decoder & Driver — 80W/96W Enclosed
All-in-one power supply and DMX512 decoder for RGB, RGBW, and Tunable White LED applications.
Key Features
- Built-in DMX512 decoder — no external decoder needed
- 4 individually controlled RGBW output channels
- 120VAC or 277VAC input → 24VDC constant voltage output
- 80W at 120V / 96W at 277V
- Daisy-chain up to 10 units
Specifications
- Input: 100–277VAC
- Output: 24VDC, 4-channel
- Enclosure: Code-compliant metal with conduit knockouts
- Certification: UL Listed (cULus)
- Warranty: 5 Years
Applications
Color-changing LightPanels, RGB/RGBW cove lighting, tunable white architectural lighting, entertainment and hospitality installations.
Downloads:
