ImageArt Glass | EOS Light

Glass-Faced Illuminated Artwork & Graphic Displays

ImageArt Glass

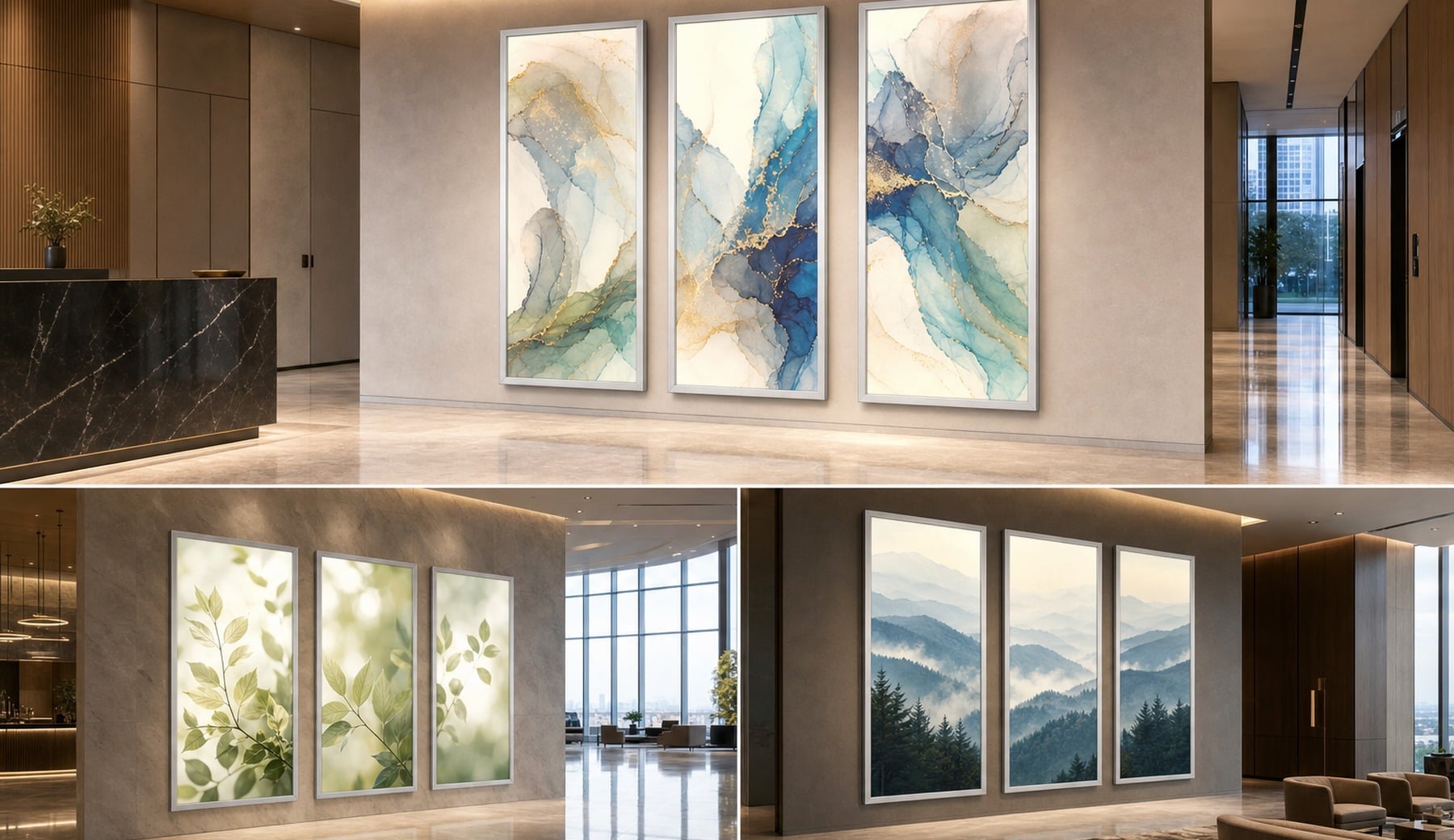

ImageArt Glass panels showing abstract, botanical and landscape artwork in commercial interiors

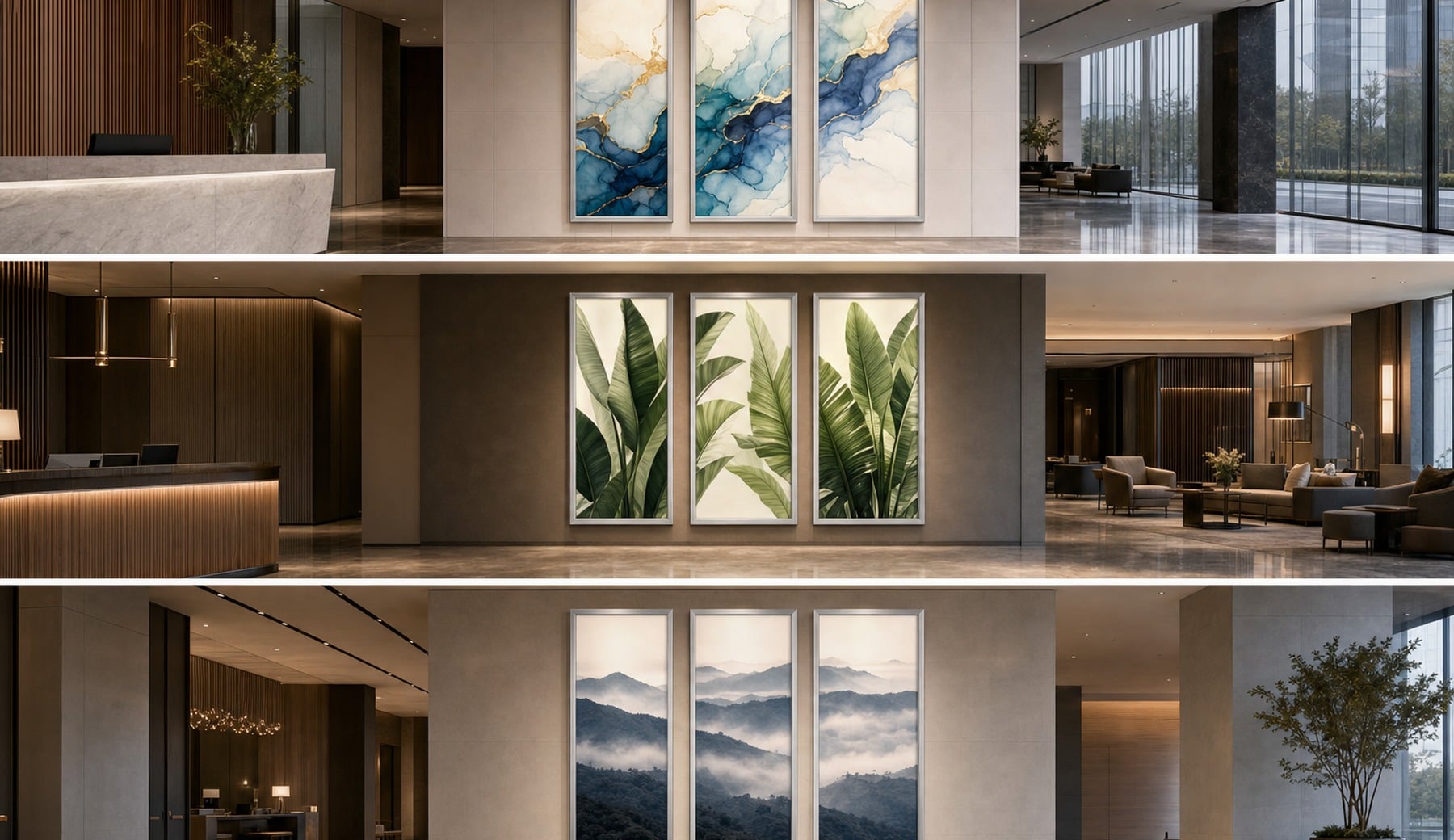

ImageArt Glass panels with abstract, botanical and landscape graphics in three commercial interiors

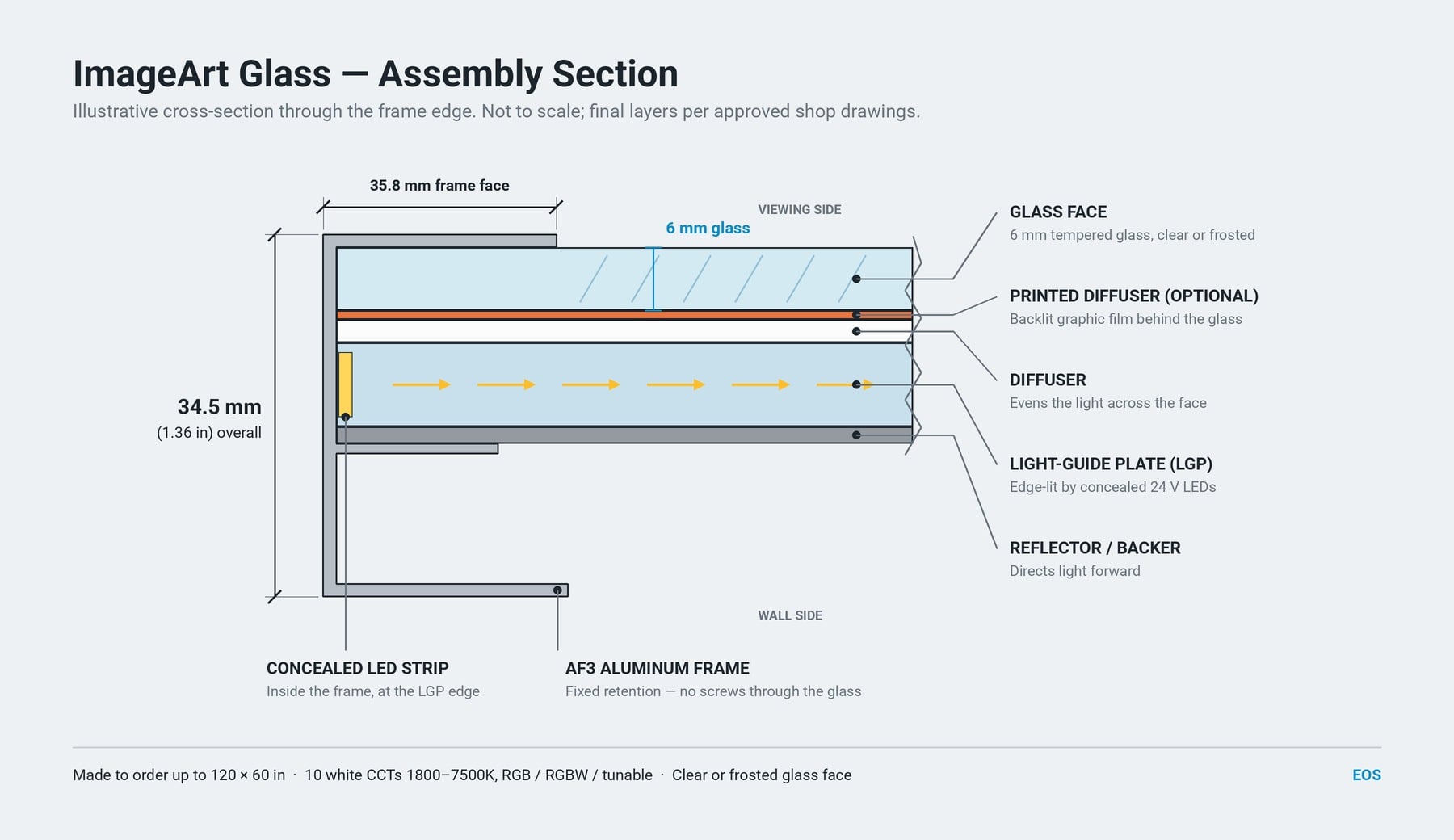

Cross-section of ImageArt Glass showing aluminum frame, 6 mm glass, optional printed diffuser, diffuser, light-guide plate and reflector, 34.5 mm overall depth

ImageArt Glass brings illuminated artwork and architectural graphics behind a clear-glass face. A separately printed backlit film sits between the glass and an edge-lit light-guide plate, creating a refined display within a slim aluminum frame. The glass is retained in the frame’s upper holder, with the image and light-guide plate directly behind it. This is a fixed, screw-retained assembly—not a snap-open graphic frame—and no fasteners pass through the glass. Configure your display by size, artwork, color temperature, light output, controls and mounting requirements. EOS coordinates the light engine, driver package and connection details for each project. Product and application images are illustrative renderings. Final configuration varies by project.

Downloads:

Find Your Local Rep Now

ImageArt Glass Features

Glass, Graphics & Light

Clear-glass face with a separately printed backlit graphic
Edge-lit light-guide plate
Fixed aluminum frame with concealed retention
6 mm nominal glass; 34.5 mm (1.36 in) nominal frame depth
Custom artwork and project-specific configuration
Interior architectural applications

Maximum overall size: 120 × 60 inches. Confirm frame finish, glass treatment and mounting with EOS.

Need diffused glass without artwork? See Glass LightPanel — frosted 1/4″ tempered glass diffuser on one side (FRST-1) or both sides (FRST-2).

Project-Matched Power & Controls

24 V DC light engine with standard- or high-power selection. Panel load, LED layout, driver capacity and driver quantity are determined for the approved size and configuration.

Control options include 0–10 V, DMX/DALI, MLV, ELV and plug-in dimming through a matched driver/controller package. Confirm compatibility for the selected system.

Coordinate cord exit, length, driver location and permitted output lead length in the project drawings.

Choose Your Light

Fixed-white options: 1800K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K and 7500K.

RGB, RGBW and tunable-white configurations are also available; confirm the required range and controls with EOS.

Glass, graphic material and LED selection affect the finished appearance. Approve an illuminated sample for your project.

Architectural Artwork & Branded Displays

Hospitality and restaurant interiors
Retail graphics and branding
Corporate lobbies and reception areas
Gallery and custom art displays
Residential feature walls
Interior wayfinding and signage

Mounting is coordinated with panel weight, substrate and access requirements. The project quotation identifies production lead time, freight method and payment terms.
