Showroom Panel FORM Series — Curved-Edge LED Display

Large-Format Showroom Display with Soft, Curved-Edge FORM Styling

Showroom Panel FORM Series

The Showroom Panel FORM Series is EOS’s large-format display solution, built for custom shapes. Available in square, rounded-corner, or fully circular profiles — with bespoke geometry on request — its soft, curved-edge aesthetic is what sets FORM apart, letting the panel take the shape your space calls for.

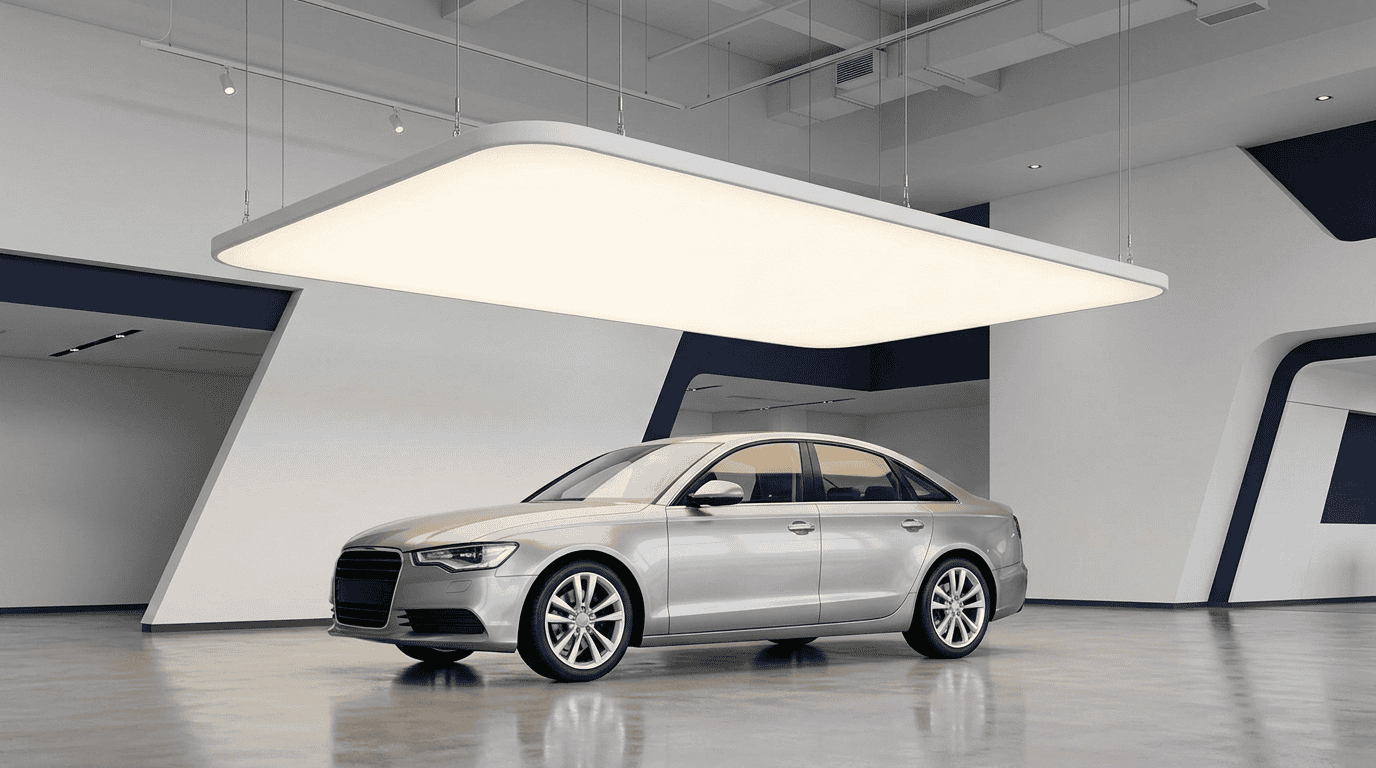

Designed to impress, it casts even, wide-ranging luminance across cars, trucks, vans, and other large-scale objects, while its rounded corners or fully circular profile bring a refined, contemporary edge to any showroom or retail environment. Finished with an EOS FABRIK stretch-fabric overlay and delivered as a complete EOS solution, it’s ready to install with no additional assembly, wiring, or hassle.

Downloads:

Find Your Local Rep Now

Showroom Panel FORM Series Features

Applications

Purpose-built for showpiece display. Ideal for auto dealerships, trade shows, retail and commercial gallery displays, interior custom art displays, hospitality and experiential environments, and commercial interiors.

Custom Shapes & Curved-Edge FORM Styling

The FORM Series is built for custom shapes. Available in square, rounded-corner, or fully circular profiles — with bespoke geometry available on request — the panel can take the form your space calls for. This shape flexibility is the defining advantage of the FORM Series: a refined, contemporary presence that a standard rectangular display simply can’t match.

Each panel is finished with an EOS FABRIK stretch-fabric overlay (white or printed) for even, seamless diffusion across the full surface, and custom sizing is available beyond the standard maximum.

Slim Large-Format Profile

3.6″ (90mm) profile with LEDs along the perimeter. Maximum size 118.125″ × 240″ (240″ length × 120″ width) — inquire for larger custom sizes. Surface or pendant mount, indoor rated. Lighter weight and large in scale — ideal for large-area display. On-site assembly required for sizes over 120″ × 80″.

Wide Color Range & High CRI

Dedicated White, Tunable White, RGB, or RGBW output. 90+ CRI standard, with 95+ Premium CRI available for the most color-critical displays. 24VDC standard with UNV 120–277 driver. Dimmable via 0–10V, ELV, DMX/DALI, plug-in and dimmable plug-in supplies.

Low Power Consumption & Long Life

24VDC standard (UNV 120–277 driver). Over 50,000 hours of LED lifetime — nearly 12 years at 12 hours a day — virtually maintenance-free once installed. 5-year warranty per EOS policy.

Note: lifetime and warranty inherited from the EOS platform baseline (shared 3.6″ / 24VDC / FABRIK chassis) — confirm final figures before publish.

UL Listed & Certified

UL listed for architectural applications; UL recognized for signage. All power supplies UL/ETL listed. c(UL)us Low Voltage Luminaire E480527 · c(UL)us E467626 · CE · RoHS. Standard trim: black powder-coated aluminum; unfinished and custom color trim available.
