• Strata LED strip matrix mounted on 1/2″ (12 mm) white polyester-fiber acoustic felt, NRC 0.70
• Backlighting and sound absorption in one surface — no impact on wattage or wiring
• Any rectangle up to 48″ × 96″ (1220 × 2440 mm) is standard — units sit side by side for larger walls and ceilings
• Custom shapes made to order: rows of strips are cut to length to fill triangles, pentagons, and custom outlines
• Three configurations: Static White, Color Tunable, and RGBW
• Use an acoustically open fabric face so sound reaches the felt
• UL listed for architectural applications, UL recognized for signage, RoHS compliant
• 50,000+ hour lifespan — virtually maintenance-free once installed

• 24VDC standard — compatible with standard EOS drivers and controllers
• Static White: 10 W/sq ft
• Color Tunable: 14 W/sq ft
• RGBW: 6 W/sq ft
• Driver input voltage: 100V–480V
• Dimmable to <10% with compatible dimmable power supplies
• Control: 0-10V / MLV / ELV dimming, DMX
• Power supply options: hardwired 0-10V, ELV, DMX/DALI, RF dimmable plug-in, inline dimmable plug-in
• Wire gauge: 20GA for white, 24GA for color

• Static White — 1800K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K, 7500K
• Color Tunable — full-range tunable white
• RGBW — full RGB color spectrum plus a dedicated white channel
• CRI 90+

• 12 mm (0.47″) white polyester-fiber felt, NRC 0.70
• Maximum size 48″ × 96″ (1220 × 2440 mm)
• No impact on wattage or wiring
• Use an acoustically open fabric face; glass, acrylic, and stone block sound from reaching the felt
• Measure the 3″ (76 mm) depth from the LED strips, not the substrate: the felt adds 1/2″ (12 mm)
• Also available: Strata (no backer) and Strata Metal

• Hotel lounges and lobbies — backlit fabric walls and ceilings that soften noise
• Restaurants and bars — glowing feature walls that cut echo

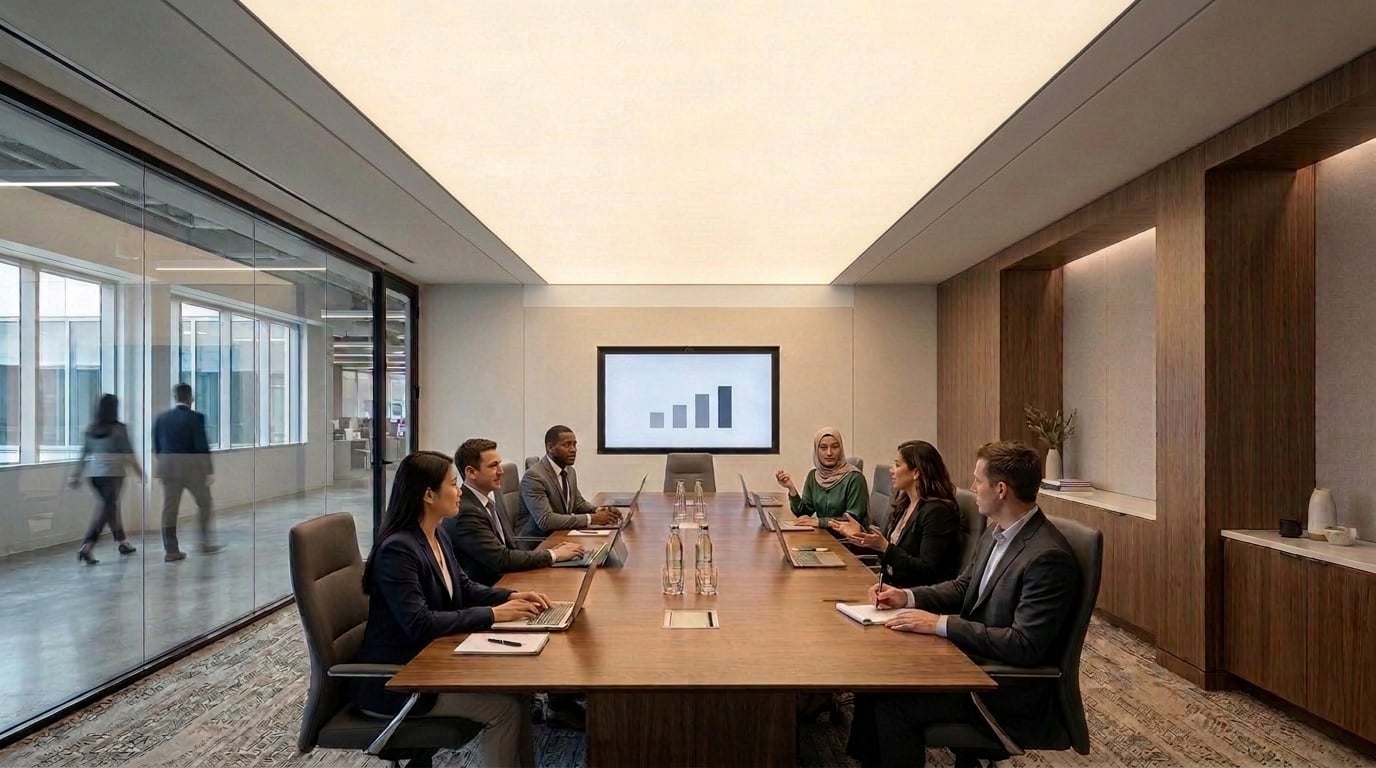

• Offices and conference rooms — branded backlit walls with acoustic control

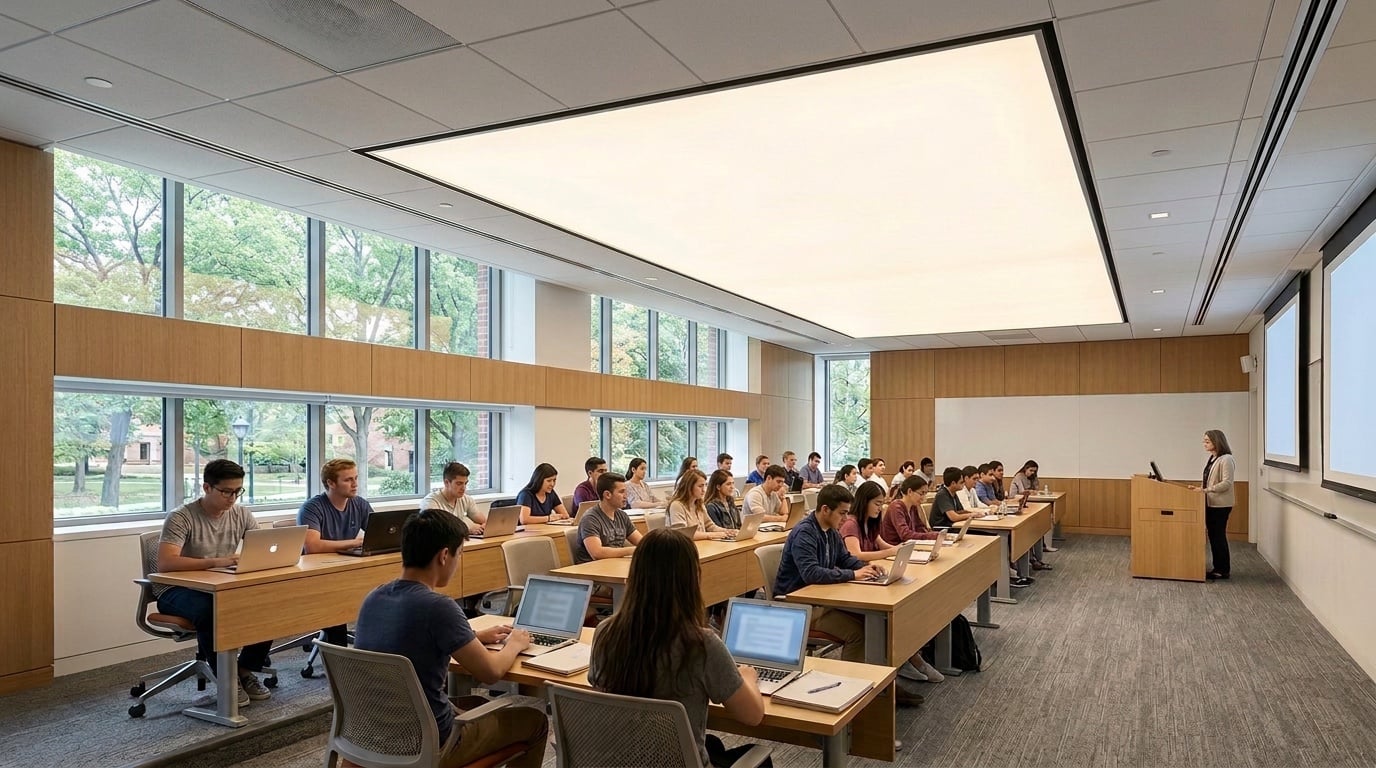

• Spas, wellness, and healthcare — calm, even ambient ceilings
• Luxury residential — media rooms and feature walls
